Rubber Seated Ductile Iron Gear Lug Butterfly Valve
- Product details
Brand WORLDS VALVE
Product origin China
Delivery time 7 Days
Supply capacity 10000 sets
ARubber Seated Ductile Iron Gear Lug Butterfly Valve is economically priced but with higher quality and capability
Butterfly valve CODE: CBF01-TL01 has installation without restriction in direction of flow and reduced weight and overall dimensions.
Rubber Seated Ductile Iron Gear Lug Butterfly Valve has high Kv / Cv values and can be installaion at the end of pipe line.
Rubber Seated Ductile Iron Gear Lug Butterfly Valve

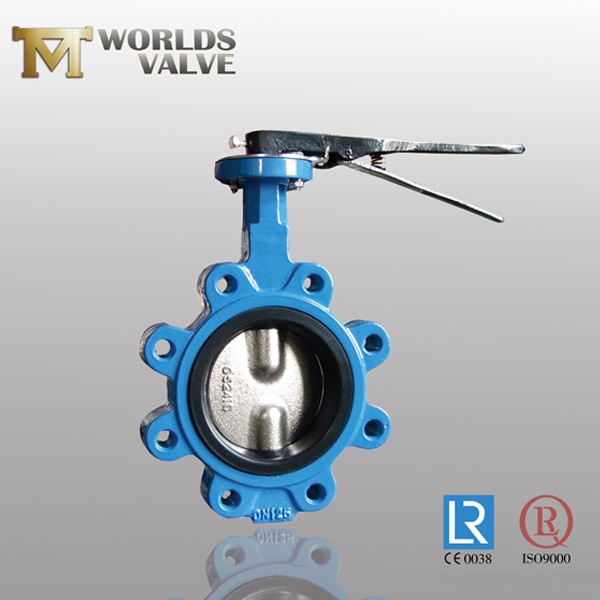

rubber seated lug butterfly valve
Main Material:
|
Name |
Material |
|
Body |
Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Disc |
Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Shaft |
Stainless Steel Monel K500 |
|
Seat |
BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |

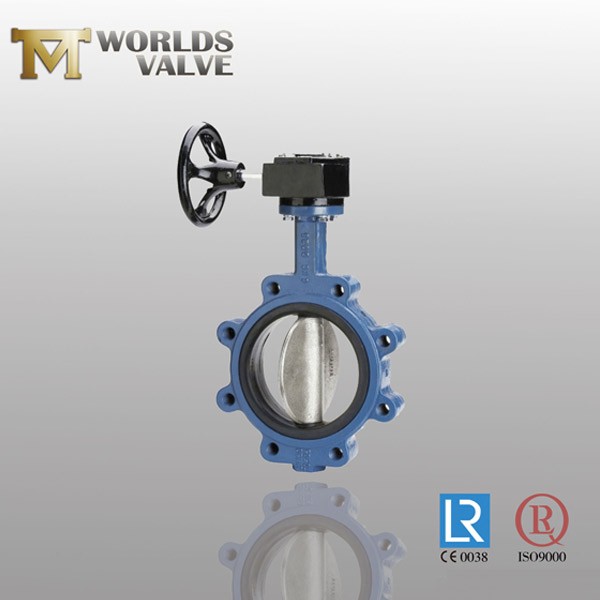

ductile iron lug butterfly valve
|
Design Standard |
EN 593 , MSS SP67 API 609 BS5155 |
|
Inspection & Test |
API 598 ISO 5208 EN 12266 |
|
End Standard |
ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWA C207 SABS 1123 Table 1000/3 & Table 1600/3 |
|
Face to Face |
ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
|
Top Flange |
ISO 5211 |

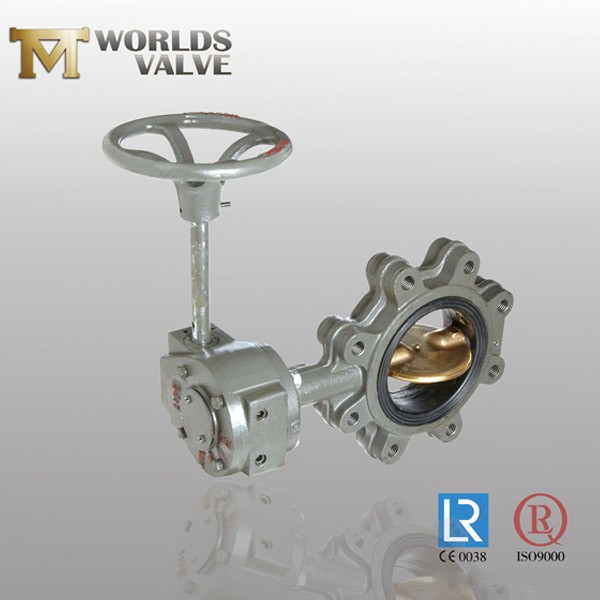

gear operation lug butterfly valve
