Hard Rubber Lined Disc Two Shaft Lug Butterfly Valve
- Product details
Brand WORLDS VALVE
Product origin China
Delivery time 7 Days
Supply capacity 10000 sets
Hard Rubber Lined Disc Two Shaft Lug Butterfly Valve is Strict control of product quality always put quality in the first place
Butterfly valve CODE: CBF03-TL01 hasSmall flow resistance coefficient
Hard Rubber Lined Disc Two Shaft Lug Butterfly Valve has high Kv / Cv values and can be installaion at the end of pipe line.
Hard Rubber Lined Disc Two Shaft Lug Butterfly Valve
Main Material:
|
Name |
Material |
|
Body |
Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Disc |
Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Shaft |
Stainless Steel Monel K500 |
|
Seat |
BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |

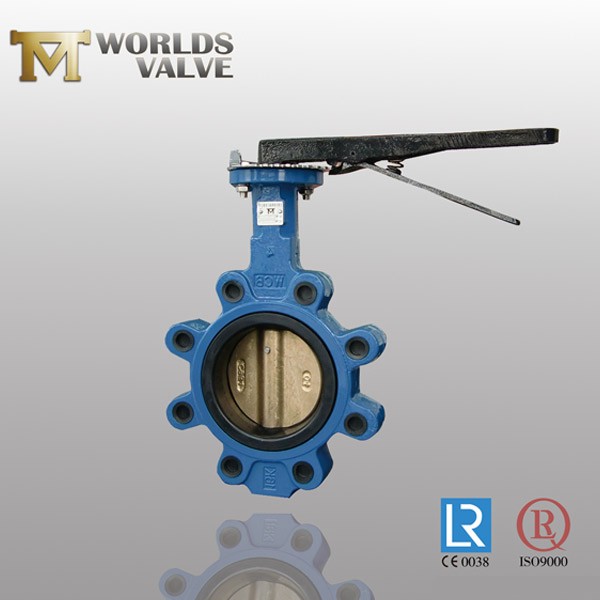

hard rubber lined disc lug butterfly valve

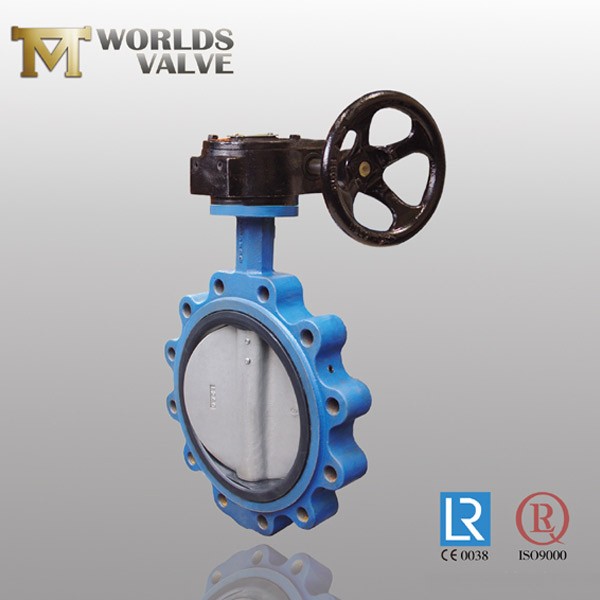

two shaft luged butterfly valve
Technical Parameters：
|
Size |
DN32-DN600 |
DN650-DN2000 |
|
Working pressure |
16Bar |
10Bar |
|
Shell |
24Bar |
15Bar |
|
Seal(Air) |
6Bar |
6Bar |
|
Operating Temperature |
-45℃~+150℃ |
|
|
Operating Environment |
Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Wastewater |
|
|
Driving method |
Hand Lever Worm Gear Electric Pneumatic |
|
