API609 Resilient Seated Taper Pin Wafer Butterfly Valve
- Product details
Brand WORLDS VALVE
Product origin China
Delivery time 7 Days
Supply capacity 10000 sets
API609 Resilient Seated Taper Pin Wafer Butterfly Valve is economically priced but with higher quality and capability butterfly valve CODE: CBF01-TA01 has installation without restriction in direction of flow and reduced weight and overall dimensions. API609 Resilient Seated Taper Pin Wafer Butterfly Valveis 100% bi-directional tight shut-off.

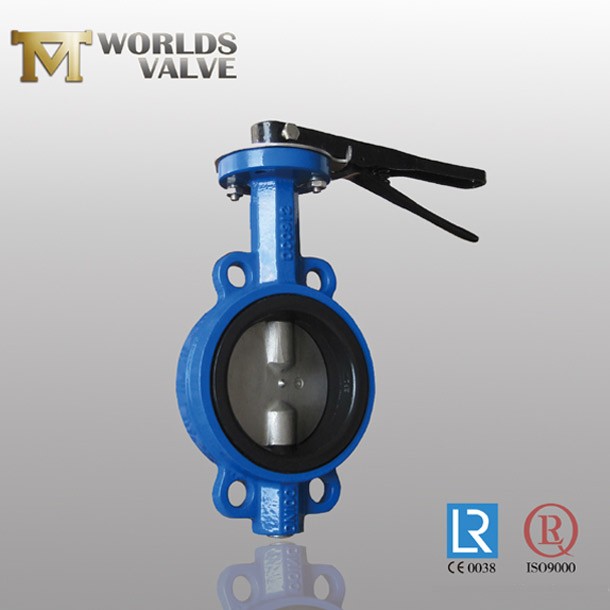

API609 Resilient Seated Taper Pin Wafer Butterfly Valve
Product Feature：
100% bi-directional tight shut-off.
Installation without restriction in direction of flow.
Reduced weight and overall dimensions.
Low pressure loss and reduced energy costs.
High Kv / Cv values.
Easy to clean and disinfect for potable water systems etc.
Self cleaning ( no residue will be trapped ).
Good resistance to corrosion.

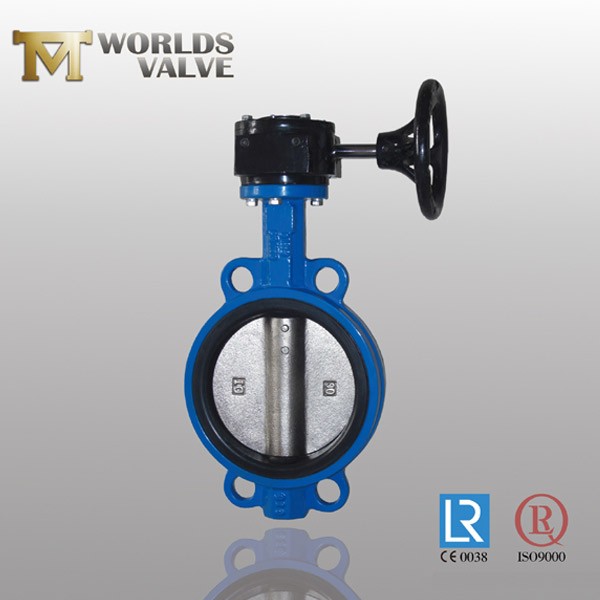

API609 wafer butterfly valve
Technical Parameters：
|
Size |
DN32-DN600 |
DN650-DN2000 |
| Working pressure |
16Bar |
10Bar |
|
Shell |
24Bar |
15Bar |
|
Seal(Air) |
6Bar |
6Bar |
|
Operating Temperature |
-45℃~+150℃ |
|
|
Operating Environment |
Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water |
|
|
Driving method |
Hand Lever Worm Gear Electric Pneumatic |
|

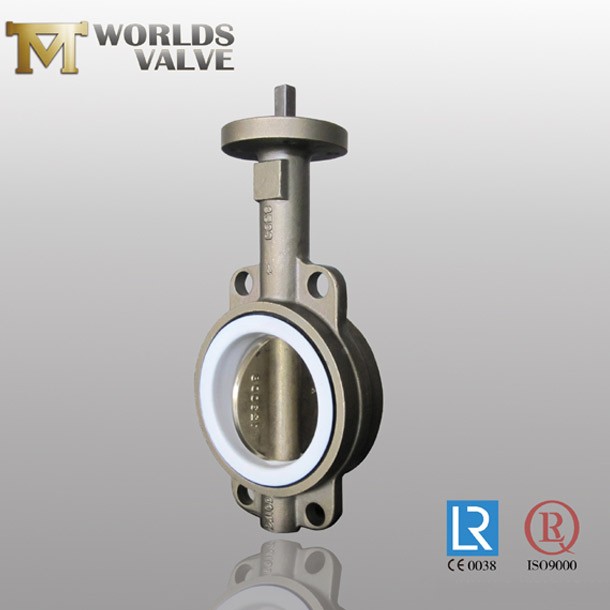

resilient seated wafer butterfly valve
|
Name |
Material |
|
Body |
Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Disc |
Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Shaft |
Stainless Steel Monel K500 |
|
Seat |
BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
taper pin wafer butterfly valve
