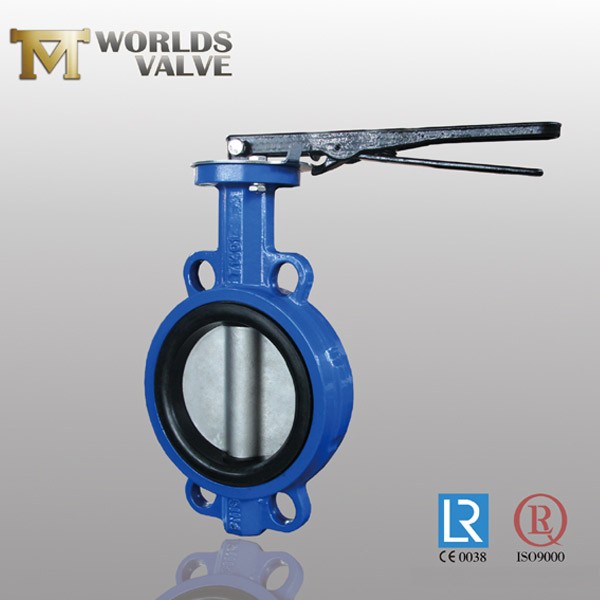

NSF61 Approval Epdm Vulcanized Wafer Butterfly Valve
- Product details
Brand WORLDS VALVE
Product origin China
Delivery time 7 Days
Supply capacity 10000 sets
NSF61 Approval Epdm Vulcanized Wafer Butterfly Valve is superior in quality
Butterfly valve CODE: CBF02-TA03
NSF61 Approval Epdm Vulcanized Wafer Butterfly Valve
Technical Parameters：
|
Size |
DN32-DN600 |
DN650-DN2000 |
|
Working pressure |
16Bar |
10Bar |
|
Shell |
24Bar |
15Bar |
|
Seal(Air) |
6Bar |
6Bar |
|
Operating Temperature |
-45℃~+150℃ |
|
|
Operating Environment |
Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water |
|
|
Driving method |

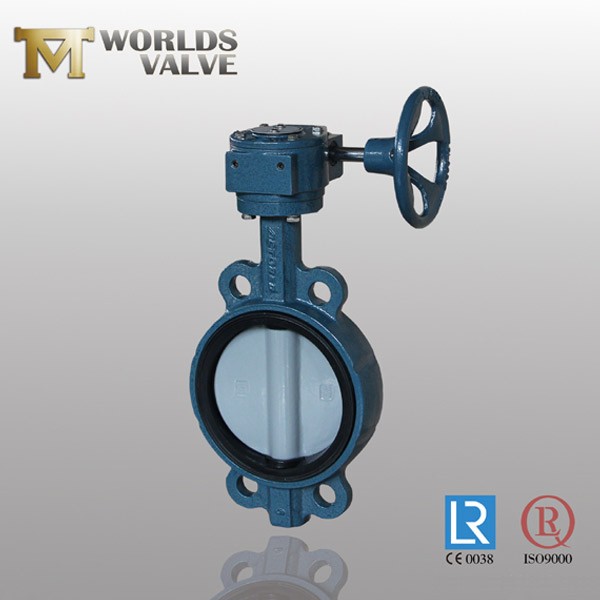

Hand Lever Worm Gear Electric Pneumatic |
|
Main Material:
|
Name |
Material |
|
Body |
Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Disc |
Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
|
Shaft |
Stainless Steel Monel K500 |
|
Seat |
BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
NSF61 approval wafer butterfly valve
EPDM vucanized wafer butterfly valve
